Konexx DWint2

Simultaneous voice and data communication over a single PBX or key system line.

Connects analog devices such as speaker phones, modems, faxes or cordless phones to digital phone lines.

Features: Easy to install. Requires programming of phone set. Compatible with all desktop systems, with modems, and communication software. Compatible with all fax machines. Eliminate the need for dedicated phone installations or special terminal adapters. Desktop or wall mount installation. Supports most 2-wire analog devices: modem, fax modem, fax machine, answering machine, cordless telephone, teleconferencing or video teleconferencing unit, etc. Connects directly to wall jack. Models for Nortel M7000 Norstar, M2000/M3900 Meridian, Avaya Definity 75/85, Avaya Prologix PBX equipped with 6400, 7400, or 8400 telephones, and Siemens Rolm series 100, 200, 300, 400, and 600 phones. V.34 compatible. Supports speeds up to 33.6 kbps. Full duplex for speakerphone and teleconferencing functions. Supports all fax protocols.

Technical Specifications: Power: 18v AC adapter. Available in 110v AC or 220v AC version. Connection requires standard NORTEL wall jack. Compact size: 7.4 x 3.9 x 1.8 in. - 188 x 99 x 45 mm. Weight: 17 ounces - 482 grams Warranty: 1 year factory.

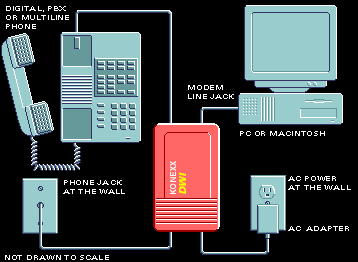

Installation Diagram:

Konexx Item: 50020 is equivalent to the Polycom Item: 2200-03111-001 - Konexx DWint (Northern Telecom Telephone Adapter) - Nortel.

Konexx Item: 50030 is for the Meridian.
